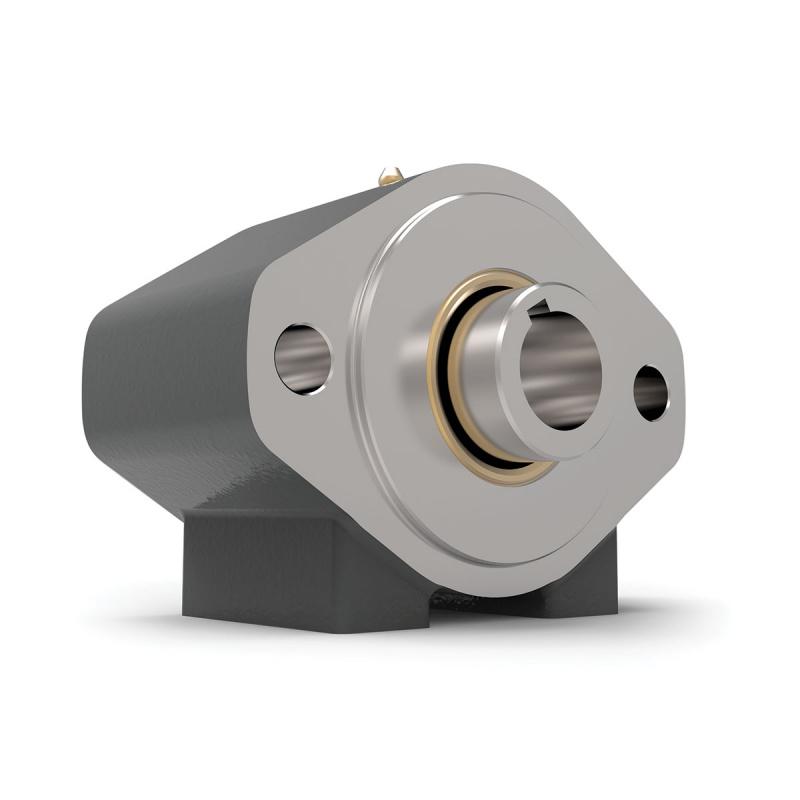

Model 210F Overhung Load Adaptor - SAE A Mount, 1" Keyed Input Bore, 1" Through-Bore Output
Part Number: 210F (-DP)
Click image to enlarge
Click image to enlarge
Technical Resources

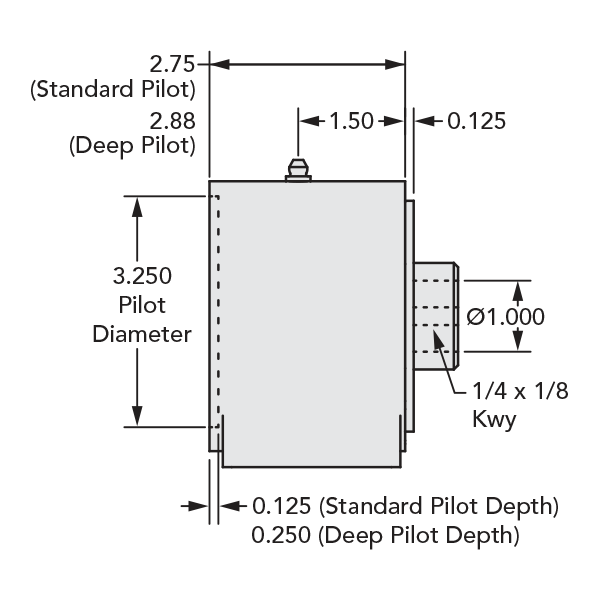

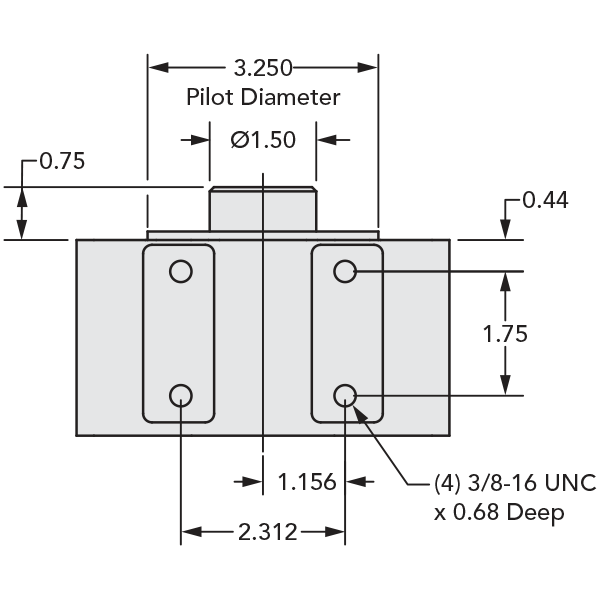

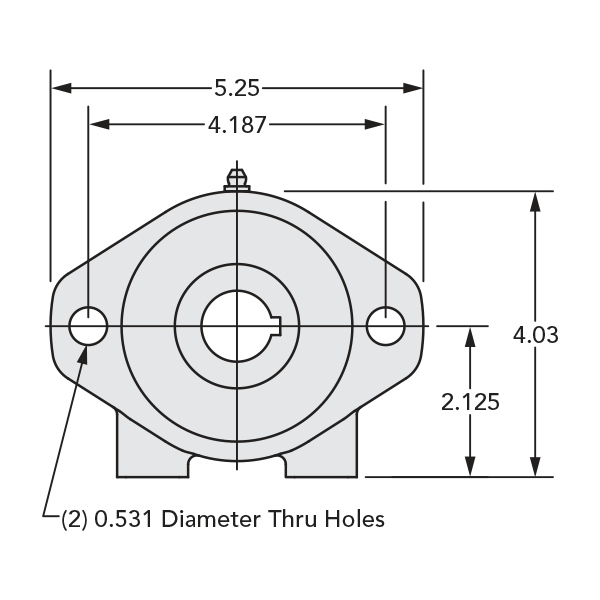

| Through-Shaft Torq-Tenders with Actuating Pin - Type BP 210f Configuration | |
| Pilot Depth | |
210F (-DP) Specifications
Click for English
Click for Metric
| Part Number | 210F (-DP) |
| Input Standard: | SAE A 2-Bolt Mount |
| Input Bore: | 1" with keyway (1/4" x 1/8") |
| Input Bore : | 25.4mm with keyway (6.35mm x 3.18mm) |
| Input Bore Depth: | Through-Bore |
| Input Bore Depth : | Through-Bore |
| Output Shaft: | 1" with keyway (1/4"); through-bore |
| Output Shaft : | 25.4mm with keyway (6.35mm); through-bore |
| Output Shaft Length: | through-bore; 0.62" ext. |
| Output Shaft Length : | through-bore; 15.7mm ext. |
| Input Pilot Diameter: | 3.250" |
| Input Pilot Diameter : | 82.55 mm |
| Input Pilot Depth: | 0.125" (std); 0.250" (deep) |
| Input Pilot Depth : | 3.18mm (std); 6.25mm (deep) |
| Output Pilot Diameter: | 3.250" |
| Output Pilot Diameter : | 82.55 mm |
| Output Pilot Height: | 0.120" |
| Output Pilot Height : | 3.05 mm |
| Max Speed (w/o modification): | 3,800 RPM |
| Housing Material: | Cast Iron |
| Shaft Material: | 1144 Stressproof Steel |
| Bearing Type (std): | Deep Groove Ball Bearings |
| Standard Lubrication Method: | Grease |
| Optional Lubrication Methods: | Contact Factory |
| Rec. Grease (typical app.): | NLGI #2; Lithium Base |
| Minimum Grease Capacity: | 0.5 oz. |
| Maximum Grease Capacity: | 1.0 oz. |
| Grease Fitting: | (1) Zerk Fitting (press-fit) |
| Unit Weight: | 10 lbs |
| Unit Weight : | 4.5 kg |
| Standard Mounting Orientation: | Shaft Horizontal - Consult Factory for other Mounting Orientations |
