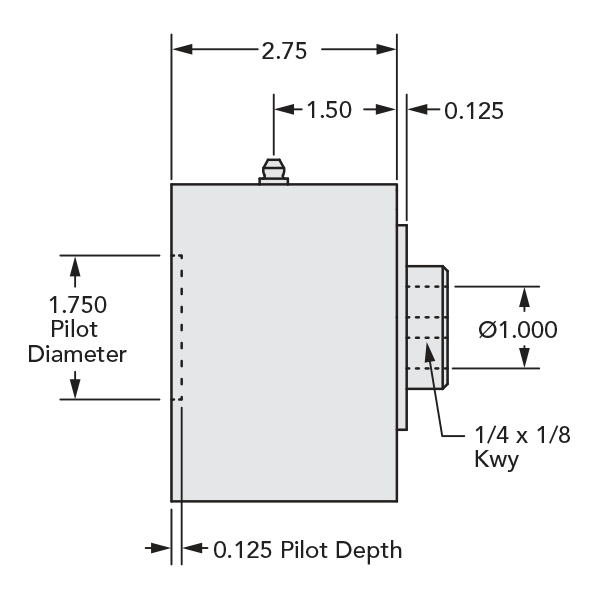

Model 410F Non-SAE Mount Overhung Load Adaptor

Part Number: 410F

Quantity:

Click image to enlarge
Specifications
Click for English
Click for Metric
  • Input Standard: Non-SAE 4-Bolt (fits LSHT motor)
  • Input Bore: 1" with keyway (1/4" x 1/8")
  • Input Bore : 25.4mm with keyway (6.35mm x 3.18mm)
  • Input Bore Depth: Through-Bore
  • Input Bore Depth : Through-Bore
  • Output Shaft: 1" with keyway (1/4"); through-bore
  • Output Shaft : 25.4mm with keyway (6.35mm); through-bore
  • Output Shaft Length: through-bore; 0.50" ext.
  • Output Shaft Length : through-bore; 12.7mm ext.
  • Input Pilot Diameter: 1.750"
  • Input Pilot Diameter : 44.45 mm
  • Input Pilot Depth: 0.125"
  • Input Pilot Depth : 3.18 mm
  • Output Pilot Diameter: 2.500"
  • Output Pilot Diameter : 63.5 mm
  • Output Pilot Height: 0.125"
  • Output Pilot Height : 3.18 mm
  • Max Speed (w/o modification): 3,800 RPM
  • Housing Material: Cast Iron
  • Shaft Material: 1144 Stressproof Steel
  • Bearing Type (std): Deep Groove Ball Bearings
  • Standard Lubrication Method: Grease
  • Optional Lubrication Methods: Contact Factory
  • Rec. Grease (typical app.): NLGI #2; Lithium Base
  • Minimum Grease Capacity: 0.4 oz.
  • Maximum Grease Capacity: 1.0 oz.
  • Grease Fitting: (1) Zerk Fitting (press-fit)
  • Unit Weight: 10 lbs
  • Unit Weight : 4.5 kg
  • Standard Mounting Orientation: Shaft Horizontal - Consult Factory for other Mounting Orientations
