Posi-Lok Keyless Shaft Bushing - 24 mm Bore
Part Number: PSL-G-24
Click image to enlarge
Click image to enlarge
Technical Resources

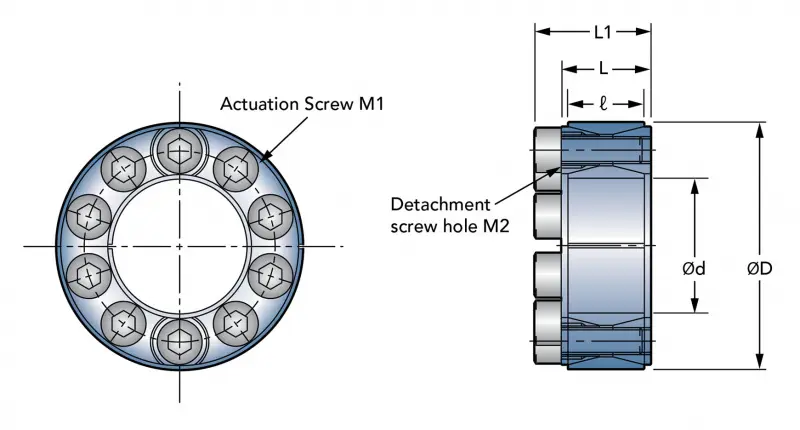

PSL-G-24 Specifications
| Part Number | PSL-G-24 |
| Transmittable T: | 303 ft-lbs |
| Transmittable FA: | 7,711 lbf |
| Shaft Bore Diameter (d): | 24 mm |
| Shaft Tolerance Grade: | h9 |
| Shaft Contact Pressure: | 32,343 PSI |
| Outside Diameter (D): | 50 mm |
| Hub Bore Tolerance Grade: | H8 |
| Hub Contact Pressure: | 15,519 PSI |
| Sleeve Length (ℓ): | 17 mm |
| Body Length (L): | 20 mm |
| Overall Length (L1): | 26 mm |
| Weight: | 0.51 lb |
| Polar Moment of Inertia: | 21 x10⁻⁴ lb-ft² |
| Actuation Screws (M1): | M6 x 18 |
| Screws No.: | 8 |
| Tightening Torque: | 150 in-lb |
| Detachment Screw Hole (M2): | 2-M8 |
