D-45 Posi-Lok Keyless Shaft Bushings

Part Number: PSL-D-45

Quantity:

Click image to enlarge
Specifications
  • Transmittable T: 885 ft-lbs
  • Transmittable FA: 11,847 lbf
  • Shaft Bore Diameter (d): 45 mm
  • Shaft Tolerance Grade: H9
  • Shaft Contact Pressure: 20,305 PSI
  • Outside Diameter (D): 75 mm
  • Hub Bore Tolerance Grade: H9
  • Hub Contact Pressure: 11,603 PSI
  • Body Length (L): 36 mm
  • Overall Length (L1): 44 mm
  • Bolt Circle (P): 60 mm
  • Weight: 1.39 lb
  • Polar Moment of Inertia: 14.452 x10⁻³ lb-ft²
  • Actuation Screws (M1): M8 x 35
  • Screws No.: 6
  • Tightening Torque: 301 in-lb
  • Detachment Screw Hole (M2): 2-M8

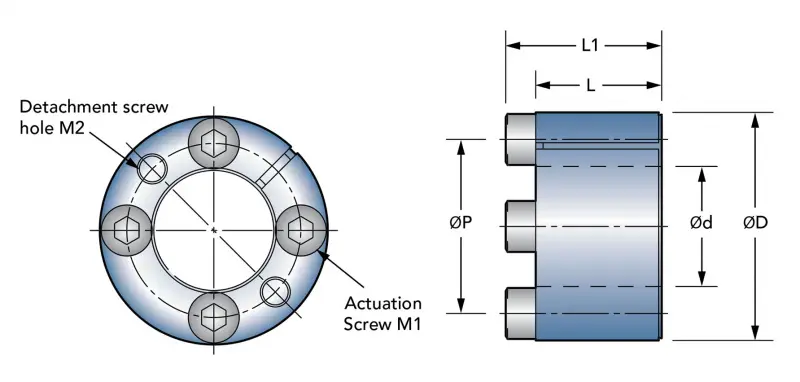

Zero-Max-Posi-Lok-PSL-D_illustrations

Product Note

  • PSL-D-45 bushings are not included in standard production runs. If not in stock, they are built to order. Contact factory for details.
