ETP-HP300 Hydropress Keyless Shaft Bushings

Part Number: ETP-HP300

Quantity:

Click image to enlarge

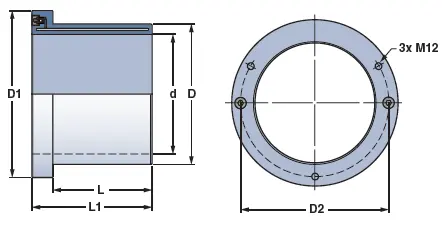

Specifications
  • Transmittable T: 19,913 ft-lbs
  • Transmittable FA: 35,968 lbf
  • Shaft Bore Diameter (d): 300 mm
  • Shaft Tolerance Grade: h7
  • Sleeve Diameter (D): 338 mm
  • Hub Bore Tolerance Grade: H7
  • Sleeve Length (L): 264 mm
  • Overall Length (L1): 300 mm
  • Flange Diameter (D1): 380 mm
  • Dimension (D2): 349 mm
etp_hydro
