ServoClass HSN High Gain Damping Couplings
Part Number: SN050R
Click image to enlarge
Click image to enlarge
Technical Resources

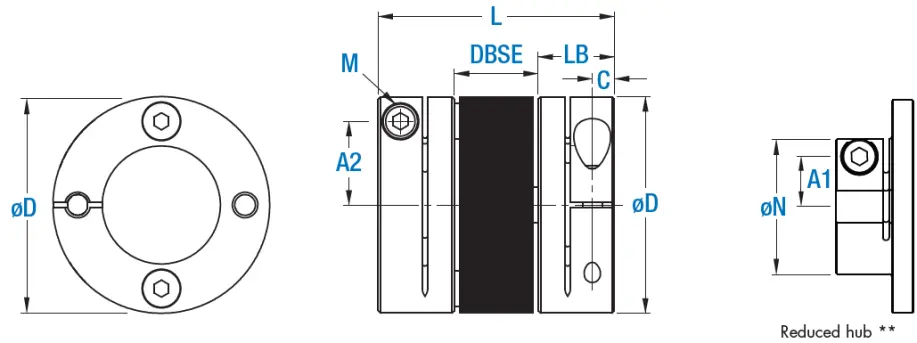

| ServoClass Double Flex sc050r Configuration | |
| Bore Size D1 | |
| Bore Size D2 | |
SN050R Specifications
Click for English
Click for Metric
| Part Number | SN050R |
| Operating Torque: | 221 in-lbs |
| Operating Torque : | 25 Nm |
| Minimum Bore: | 0.375 inches |
| Minimum Bore : | 8 mm |
| Maximum Bore: | 1.1875 inches |
| Maximum Bore : | 30 mm |
| Maximum Speed: | 10,000 RPM |
| Torsional Stiffness: | 429 in-lbs/degree |
| Torsional Stiffness : | 2,775 Nm/rad |
| Axial Stiffness: | 3,757 lbs/inch |
| Axial Stiffness : | 658 N/mm |
| Parallel Misalignment: | 0.008 inches |
| Parallel Misalignment : | 0.2 mm |
| Angular Misalignment: | 1.5 ° |
| Axial Misalignment: | 0.012 inches |
| Axial Misalignment : | 0.3 mm |
| Inertia: | See Catalog |
| Inertia : | See Catalog |
| Weight: | See Catalog |
| Weight : | See Catalog |
| Outside Diameter (D): | 2.205 inches |
| Outside Diameter (D) : | 56 mm |
| Overall Length (L): | 2.354 Inches |
| Overall Length (L) : | 59.8 mm |
| Hub Length (LB): | 0.807 Inches |
| Hub Length (LB) : | 20.5 mm |
| Reduced Hub Diameter (N): | 1.496 Inches |
| Reduced Hub Diameter (N) : | 38 mm |
| Distance Between Shaft Ends (DBSE): | 0.740" |
| Distance Between Shaft Ends (DBSE) : | 18.8 mm |
| Inside Diameter of Flex Element (K): | 1.161 Inches |
| Inside Diameter of Flex Disc (K) : | 29.5 mm |
| Clamp Screw to Bore (A2): | 0.866 inches |
| Clamp Screw to Bore (A2) : | 22 mm |
| Clamp Screw to Bore (A1, Reduced Hub): | 0.571" |
| Clamp Screw to Bore (A1, Reduced Hub) : | 14.5 mm |
| Clamp Screw to End of Hub (C): | 0.236 Inches |
| Clamp Screw to End of Hub (C) : | 6 mm |
| Clamp Screw Size (M): | M5 |
| Clamp Screw Size (M) : | M5 |
| Tightening Torque: | 62 in-lbs |
| Tightening Torque : | 7 Nm |
