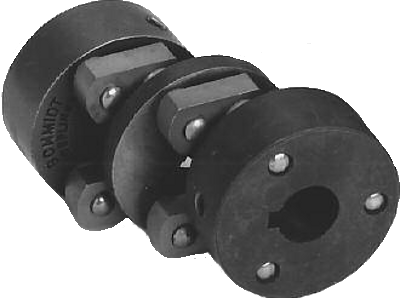

Schmidt Offset Shaft Couplings
Part Number: L119A
Click image to enlarge
Click image to enlarge
Technical Resources
| Schmidt Offset Shaft Couplings l119a Configuration | |
| Bore Size D1 | |
| Bore Size D2 | |
L119A Specifications
Click for English
Click for Metric
| Part Number | L119A |
| Horsepower Capacity: | 0.50 hp |
| Maximum Torque Capacity: | 400 in-lbs |
| Maximum Torque Capacity : | 45.2 Nm |
| Practical Speed Limit: | 3,000 RPM |
| Lowest Speed for Max Torque: | 80 RPM |
| Min Operating Shaft Offset (S min): | 0.250 inches |
| Min Operating Shaft Offset (S min) : | 6.35 mm |
| Max Operating Shaft Offset (S max): | 0.900 inches |
| Max Operating Shaft Offset (S max) : | 22.86 mm |
| Max Shaft Linear Travel (S ml): | 1.728 inches |
| Max Shaft Linear Travel (S ml) : | 43.9 mm |
| Coupling Weight: | 1.4 lbs |
| Coupling Weight : | 0.63 kg |
| Inertia (WK²): | 0.555 lb-in² |
| Inertia (WK²) : | 1.62 kg-cm² |
| Disc Diameter (D): | 1.90 inches |
| Disc Diameter (D) : | 48.3 mm |
| Coupling Length (B): | 2.93 (±.040) inches |
| Coupling Length (B) : | 74.35 (±1.02) mm |
| Shaft Bore (Z): | 0.500"|0.625"|0.750"|0.875" |
| Shaft Bore (Z) : | 12.70 mm (1/2")|15.875 mm (5/8") 19.05mm (3/4")|22.275 mm (7/8") |
| Disc Width (K): | 0.75 inches |
| Disc Width (K) : | 19.05 mm |
| Shaft Separation (H): | 1.43 inches |
| Shaft Separation (H) : | 36.2 mm |
