Schmidt Offset Shaft Couplings
Part Number: L115A

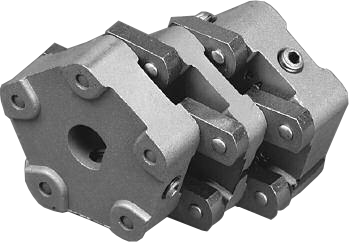

Click image to enlarge

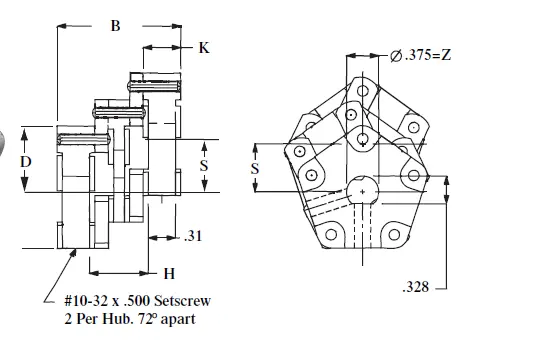

Click image to enlarge
Technical Resources
L115A Specifications
Click for English
Click for Metric
| Part Number | L115A |
| Horsepower Capacity: | 0.37 hp |
| Maximum Torque Capacity: | 140 in-lbs |
| Maximum Torque Capacity : | 15.8 Nm |
| Practical Speed Limit: | 4,000 RPM |
| Lowest Speed for Max Torque: | 160 RPM |
| Min Operating Shaft Offset (S min): | 0.156 inches |
| Min Operating Shaft Offset (S min) : | 3.96 mm |
| Max Operating Shaft Offset (S max): | 0.562 inches |
| Max Operating Shaft Offset (S max) : | 14.27 mm |
| Max Shaft Linear Travel (S ml): | 1.080 inches |
| Max Shaft Linear Travel (S ml) : | 27.4 mm |
| Coupling Weight: | 0.4 lbs |
| Coupling Weight : | 0.18 kg |
| Inertia (WK²): | 0.100 lb-in² |
| Inertia (WK²) : | 0.29 kg-cm² |
| Disc Diameter (D): | 1.56 inches |
| Disc Diameter (D) : | 39.7 mm |
| Coupling Length (B): | 1.44 (±.040) inches |
| Coupling Length (B) : | 36.53 (±1.02) mm |
| Shaft Bore (Z): | 0.375" D-Bore |
| Shaft Bore (Z) : | 9.525 mm (3/8") D-Bore |
| Disc Width (K): | 0.44 inches |
| Disc Width (K) : | 11.13 mm |
| Shaft Separation (H): | 0.68 inches |
| Shaft Separation (H) : | 17.3 mm |
