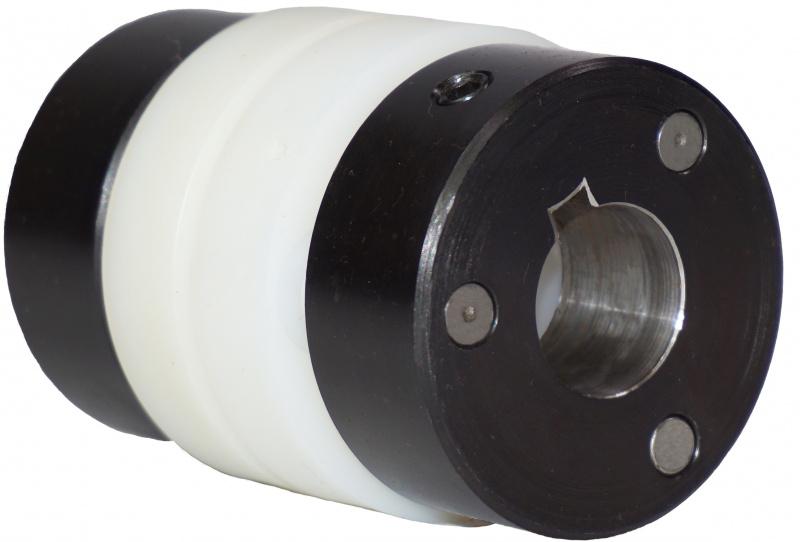

Schmidt Flexible Couplings
Part Number: F028B
Click image to enlarge
Specifications
Click for English
Click for Metric
- Maximum Torque Capacity: 630 in-lbs
- Maximum Torque Capacity : 71 Nm
- Minimum Bore (A): 0.625 inches
- Minimum Bore (A) : 16 mm
- Maximum Bore (A): 1.000 inches
- Maximum Bore (A) : 25 mm
- Hub Diameter (D): 2.812 inches
- Hub Diameter (D) : 71.42 mm
- Overall Length (B): 3.375 inches
- Overall Length (B) : 85.73 mm
- Flex Disc Diameter (F): 2.812 inches
- Flex Disc Diameter (F) : 71.42 mm
- Hub Length (K): 1.000 inches
- Hub Length (K) : 25.40 mm
- Max Parallel Misalignment: 0.010 inches
- Max Parallel Misalignment : 0.25 mm
- Max Angular Misalignment: 1°
- Max Axial Misalignment: 0.025 inches
- Max Axial Misalignment : 0.64 mm
- Torsional Stiffness: 532 In-lbs/degree
- Torsional Stiffness : 3,444 Nm/rad
- Net Weight: 2.80 lbs
- Net Weight : 1.27 kg
- Inertia (WK²): 2.27 lb-in²
- Inertia (WK²) : 6.64 kg-cm²
