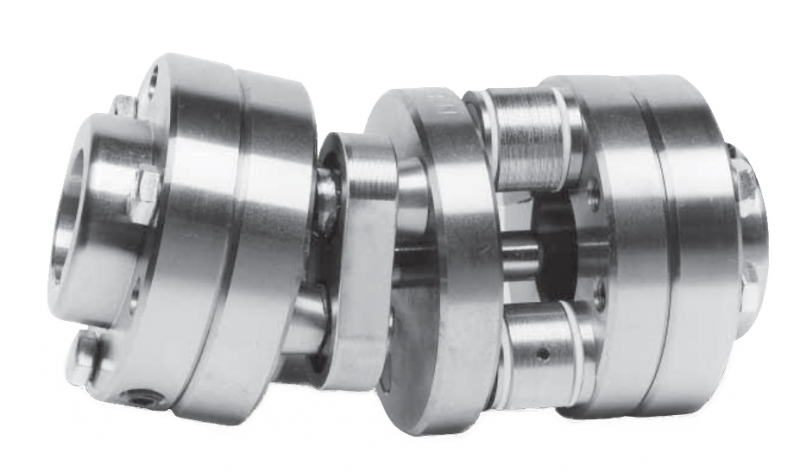

Schmidt 5-D Couplings
Part Number: L558S
Specifications
Click for English
Click for Metric
- Maximum Torque Capacity: 6,000 in-lbs
- Maximum Torque Capacity : 678 Nm
- Max Shaft Parallel Displacement: 0.188 inches
- Max Shaft Parallel Displacement : 4.8 mm
- Max Shaft Angular Displacement: ±5°
- Coupling Weight: 10 lbs
- Coupling Weight : 4.54 kg
- Inertia (WK²): 26.0 lb-in²
- Inertia (WK²) : 76.07 kg-cm²
- End Disc Diameter (D): 5.63 inches
- End Disc Diameter (D) : 143 mm
- Swing Diameter (SD): 5.82 inches
- Swing Diameter (SD) : 147.8 mm
- Coupling Length (B): 4.18 inches
- Coupling Length (B) : 106 mm
- End Disc Bore (Z): 3.25 inches
- End Disc Bore (Z) : 82.6 mm
- Mounting Bolt Circle (G): 4.375 inches
- Mounting Bolt Circle (G) : 111.1 mm
- Bolt Size M: 5/16"-18
- Number of Bolts: 6
- Hub (Optional) Part Number: S6032XX
- Maximum Hub Bore: 2.50 inches
- Maximum Hub Bore : 63 mm
- Hub Diameter (A): 5.25 inches
- Hub Diameter (A) : 133 mm
- Hub Width (B): 1.875 inches
- Hub Width (B) : 47.6 mm
- Hub Weight (ea.): 7.6 lbs
- Hub Weight (ea.) : 3.45 kg
- Hub Fastener Size: (6) 5/16-18 x 1"
| Configuration |
| Bore Size D1 |
|
| Bore Size D2 |
|
Schmidt 5-D Couplings
Part Number: L558S
Specifications
Click for English
Click for Metric
| Maximum Torque Capacity: | 6,000 in-lbs |
| Maximum Torque Capacity : | 678 Nm |
| Max Shaft Parallel Displacement: | 0.188 inches |
| Max Shaft Parallel Displacement : | 4.8 mm |
| Max Shaft Angular Displacement: | ±5° |
| Coupling Weight: | 10 lbs |
| Coupling Weight : | 4.54 kg |
| Inertia (WK²): | 26.0 lb-in² |
| Inertia (WK²) : | 76.07 kg-cm² |
| End Disc Diameter (D): | 5.63 inches |
| End Disc Diameter (D) : | 143 mm |
| Swing Diameter (SD): | 5.82 inches |
| Swing Diameter (SD) : | 147.8 mm |
| Coupling Length (B): | 4.18 inches |
| Coupling Length (B) : | 106 mm |
| End Disc Bore (Z): | 3.25 inches |
| End Disc Bore (Z) : | 82.6 mm |
| Mounting Bolt Circle (G): | 4.375 inches |
| Mounting Bolt Circle (G) : | 111.1 mm |
| Bolt Size M: | 5/16"-18 |
| Number of Bolts: | 6 |
| Hub (Optional) Part Number: | S6032XX |
| Maximum Hub Bore: | 2.50 inches |
| Maximum Hub Bore : | 63 mm |
| Hub Diameter (A): | 5.25 inches |
| Hub Diameter (A) : | 133 mm |
| Hub Width (B): | 1.875 inches |
| Hub Width (B) : | 47.6 mm |
| Hub Weight (ea.): | 7.6 lbs |
| Hub Weight (ea.) : | 3.45 kg |
| Hub Fastener Size: | (6) 5/16-18 x 1" |
