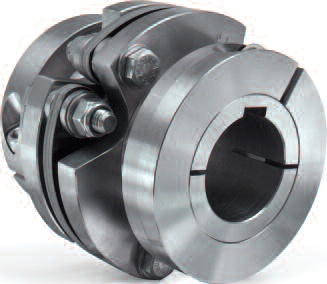

Stainless Steel Single Flex Clamp Hub Composite Disc Couplings
Part Number: 6A30C-SS
Click image to enlarge
Click image to enlarge
Technical Resources
| Single Clamp Type Stainless Steel Hubs 6a30c-ss Configuration | |
| Bore Size D1 | |
| d1 Keyway Option | |
| Bore Size D2 | |
| d2 Keyway Option | |
6A30C-SS Specifications
Click for English
Click for Metric
| Part Number | 6A30C-SS |
| Continuous Rated Torque: | 800 in-lbs |
| Continuous Rated Torque : | 90 Nm |
| Peak Rated Torque: | 1,600 in-lbs |
| Peak Rated Torque : | 180 Nm |
| Maximum Bore (E) with Keyway: | 1.125 inches |
| Maximum Bore (E) with Keyway : | 28 mm |
| Maximum Bore (E) without Keyway: | 1.375 inches |
| Maximum Bore (E) without Keyway : | 35 mm |
| Maximum Speed: | 8,000 RPM |
| Torsional Stiffness: | 6,639 In-lbs/degree |
| Torsional Stiffness : | 42,976 Nm/rad |
| Parallel Misalignment: | 0.010 inches |
| Parallel Misalignment : | 0.30 mm |
| Angular Misalignment: | 3 ° |
| Axial Misalignment: | 0.050 inches |
| Axial Misalignment : | 1.3 mm |
| Weight at Max Bore: | 2.88 lbs |
| Weight at Max Bore : | 1.31 kg |
| Inertia at Max Bore: | 3.11 lb-in² |
| Inertia at Max Bore : | 9.10 kg-cm² |
| Outside Diameter (A): | 3.00 inches |
| Outside Diameter (A) : | 76.2 mm |
| Overall Length (L): | 2.96 inches |
| Overall Length (L) : | 75.2 mm |
| Hub Length (B): | 1.25 inches |
| Hub Length (B) : | 31.8 mm |
| Distance Between Shaft Ends (C): | 0.46 inches |
| Distance Between Shaft Ends (C) : | 11.7 mm |
| Inside Diameter of Disc-Pack (H): | 1.21 inches |
| Inside Diameter of Disc-Pack (H) : | 31 mm |
| Maximum Clamp Collar Diameter (F): | 2.63 inches |
| Maximum Clamp Collar Diameter (F) : | 67 mm |
| Maximum Clamp Collar Width (D): | 0.690 inches |
| Maximum Clamp Collar Width (D) : | 18 mm |
