Double Flex QD Bushing Composite Disc Couplings
Part Number: 6P60QD
Click image to enlarge
Click image to enlarge
Technical Resources
6P60QD Specifications
Click for English
Click for Metric
| Part Number | 6P60QD |
| Continuous Rated Torque: | 6,350 in-lbs |
| Continuous Rated Torque : | 718 Nm |
| Peak Rated Torque: | 12,700 in-lbs |
| Peak Rated Torque : | 1,436 Nm |
| Maximum Speed: | 4,600 RPM |
| Torsional Stiffness: | 20,200 In-lbs/degree |
| Torsional Stiffness : | 130,763 Nm/rad |
| Parallel Misalignment: | 0.069 inches |
| Parallel Misalignment : | 1.8 mm |
| Angular Misalignment: | 3 ° |
| Axial Misalignment: | 0.260 inches |
| Axial Misalignment : | 6.6 mm |
| Weight with Bushing: | 18.9 lbs |
| Weight with Bushing : | 8.57 kg |

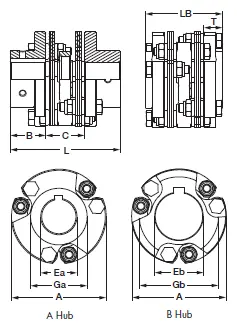

| Outside Diameter (A): | 6.00 inches |
| Outside Diameter (A) : | 152 mm |
| Overall Length w/o Bushing (LB): | 5.17 inches |
| Overall Length w/o Bushing (LB) : | 131 mm |
| Hub Length (T): | 1.38 inches |
| Hub Length (T) : | 35.1 mm |
| Distance Between Shaft Ends (C): | 2.41 inches |
| Distance Between Shaft Ends (C) : | 61.2 mm |
| Inside Diameter of Disc-Pack (H): | 2.42 inches |
| Inside Diameter of Disc-Pack (H) : | 61 mm |
| QD Bushing Type: | SD |
