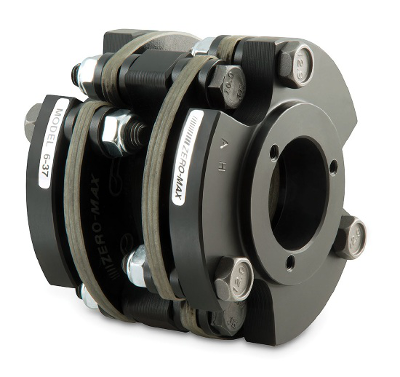

Double Flex QD Bushing Composite Disc Couplings
Part Number: 6P37QD
Click image to enlarge
Click image to enlarge
Technical Resources
6P37QD Specifications
Click for English
Click for Metric
| Part Number | 6P37QD |
| Continuous Rated Torque: | 1,600 in-lbs |
| Continuous Rated Torque : | 181 Nm |
| Peak Rated Torque: | 3,200 in-lbs |
| Peak Rated Torque : | 362 Nm |
| Maximum Speed: | 7,400 RPM |
| Torsional Stiffness: | 5,051 In-lbs/degree |
| Torsional Stiffness : | 32,700 Nm/rad |
| Parallel Misalignment: | 0.049 inches |
| Parallel Misalignment : | 1.2 mm |
| Angular Misalignment: | 3 ° |
| Axial Misalignment: | 0.140 inches |
| Axial Misalignment : | 3.6 mm |
| Weight with Bushing: | 4.00 lbs |
| Weight with Bushing : | 1.81 kg |
| Outside Diameter (A): | 3.75 inches |
| Outside Diameter (A) : | 95.3 mm |
| Overall Length w/o Bushing (LB): | 2.93 inches |
| Overall Length w/o Bushing (LB) : | 74.4 mm |
| Hub Length (T): | 0.63 inches |
| Hub Length (T) : | 16.0 mm |
| Distance Between Shaft Ends (C): | 1.67 inches |
| Distance Between Shaft Ends (C) : | 42.4 mm |
| Inside Diameter of Disc-Pack (H): | 1.51 inches |
| Inside Diameter of Disc-Pack (H) : | 38 mm |
| QD Bushing Type: | JA |
