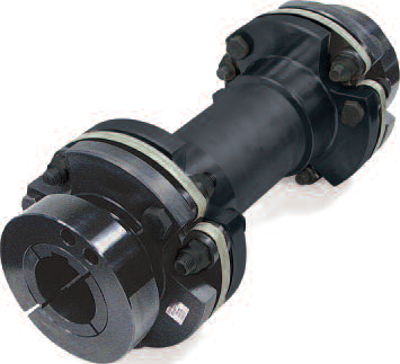

Floating Shaft Clamp Hub Composite Disc Couplings
Part Number: 6F30C
Click image to enlarge
Click image to enlarge
Technical Resources
| Clamp Type Hubs 6f30c Configuration | |
| Bore Size D1 | |
| d1 Keyway Option | |
| Bore Size D2 | |
| d2 Keyway Option | |
| RPM (200 to 3,600) | |
| Shaft Span (DBSE) (inches) (2.7 to 120.0) | |
6F30C Specifications
Click for English
Click for Metric
| Part Number | 6F30C |
| Continuous Rated Torque: | 800 in-lbs |
| Continuous Rated Torque : | 90 Nm |
| Peak Rated Torque: | 1,600 in-lbs |
| Peak Rated Torque : | 180 Nm |
| Maximum Bore (Ec) with Keyway: | 1.125 inches |
| Maximum Bore (Ec) with Keyway : | 30 mm |
| Maximum Bore (Ec) w/o Keyway: | 1.375 inches |
| Maximum Bore (Ec) w/o Keyway : | 35 mm |
| Maximum Speed: | See Catalog (page 17) |
| Torsional Stiffness: | See Catalog (page 15) |
| Parallel Misalignment: | 0.022 inches/inch of DBSE |
| Parallel Misalignment : | 22 mm/Meter of DBSE |
| Angular Misalignment: | See Catalog (page 17) |
| Axial Misalignment: | 0.100 inches |
| Axial Misalignment : | 2.5 mm |
| Weight: | See Catalog (page 15) |
| Inertia: | See Catalog (page 15) |
| Outside Diameter (A): | 3.00 inches |
| Outside Diameter (A) : | 76.2 mm |
| Hub Length (Bc): | 1.25 inches |
| Hub Length (Bc) : | 31.8 mm |
| Minimum DBSE (C): | 2.69 inches |
| Minimum DBSE (C) : | 68.3 mm |
| Maximum DBSE (C): | See Catalog (page 17) |
| Inside Diameter of Disc-Pack (H): | 1.21 inches |
| Inside Diameter of Disc-Pack (H) : | 31 mm |
| Maximum Clamp Collar Diameter (F): | 2.92 inches |
| Maximum Clamp Collar Diameter (F) : | 74 mm |
| Maximum Clamp Collar Width (D): | 0.709 inches |
| Maximum Clamp Collar Width (D) : | 18 mm |
