Model 350-13S Extra-Duty SAE A OHLA
Part Number: 350-13S
Click image to enlarge
Specifications
Click for English
Click for Metric

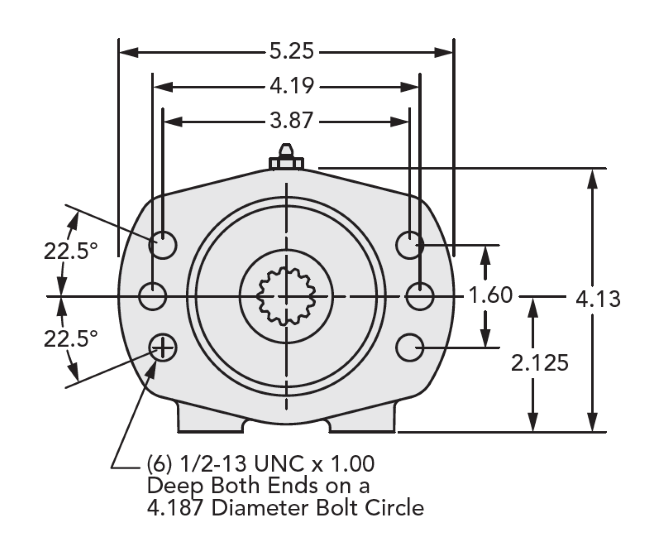

- Input Standard: SAE A 2-Bolt or 4-Bolt Magneto
- Input Bore: 13 tooth 16/32 Spline
- Input Bore : 13 tooth 16/32 Spline
- Input Bore Depth: 2.28"
- Input Bore Depth : 57.91 mm

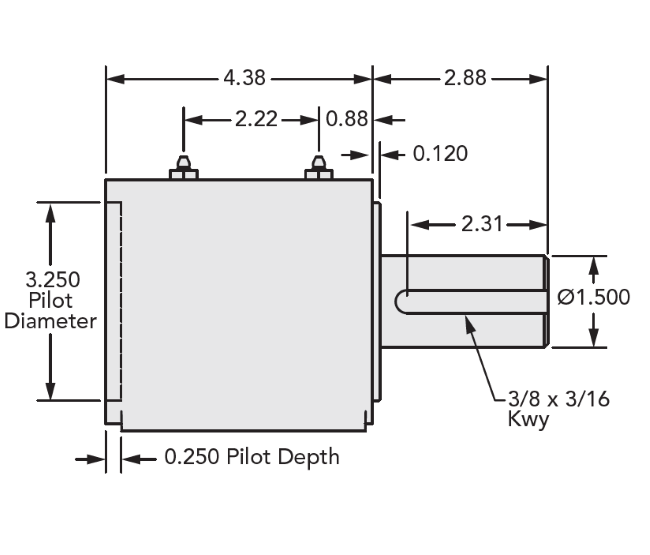

- Output Shaft: 1-1/2" with keyway (3/8" x 3/16")
- Output Shaft : 38.1mm with keyway (9.53mm x 4.76mm)
- Output Shaft Length: 2.75"
- Output Shaft Length : 69.9 mm

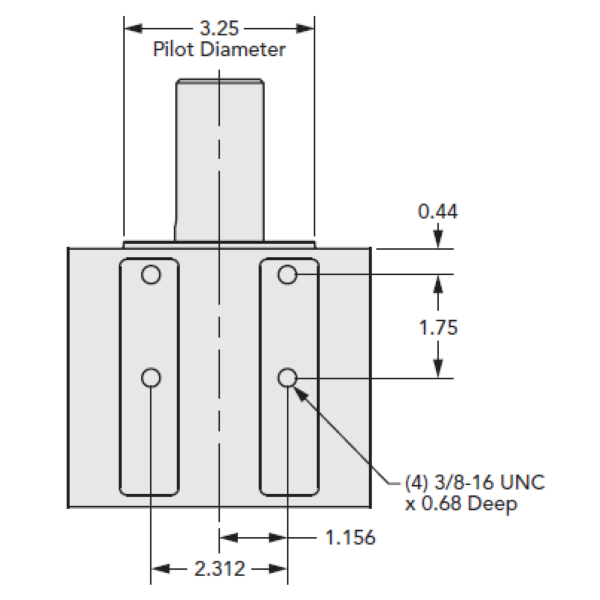

- Input Pilot Diameter: 3.250"
- Input Pilot Diameter : 82.55 mm
- Input Pilot Depth: 0.250"
- Input Pilot Depth : 6.35 mm
- Output Pilot Diameter: 3.250"
- Output Pilot Diameter : 82.55 mm
- Output Pilot Height: 0.125"
- Output Pilot Height : 3.18 mm
- Max Speed (w/o modification): 3,300 RPM
- Housing Material: Cast Iron
- Shaft Material: 8620 Steel - Heat-treated
- Bearing Type (std): Spherical Roller Bearings
- Standard Lubrication Method: Grease
- Optional Lubrication Methods: Contact Factory
- Rec. Grease (typical app.): NLGI #2; Lithium Base
- Minimum Grease Capacity: 1.2 oz.
- Maximum Grease Capacity: 2.2 oz.
- Grease Fitting: (2) Zerk Fitting (1/4-18 NPT)
- Unit Weight: 18 lbs
- Unit Weight : 8.2 kg
- Standard Mounting Orientation: Shaft Horizontal - Consult Factory for other Mounting Orientations
