End of Shaft Torq-Tender with Actuating Disc
Part Number: TT2-SD
Click image to enlarge
Specifications
Click for English
Click for Metric
- Torque Range: 4 - 140 in-lbs (must specify)
- Torque Range : 0.5 - 15.8 Nm (must specify)
- Minimum Bore: 0.3125 inches
- Minimum Bore : 8 mm
- Max Bore (C): 0.625 inches
- Max Bore (C) : 16 mm
- Housing Diameter (A): 2.165 inches
- Housing Diameter (A) : 54.99 mm
- Overall Length (K): 2.420 inches
- Overall Length (K) : 61.47 mm
- Dimension (B): 1.250 inches
- Dimension (B) : 31.75 mm
- Dimension (D): 1.540 inches
- Dimension (D) : 39.12 mm
- Dimension (G): 1.375 inches
- Dimension (G) : 34.90 mm
- Dimension (H): 0.250 inches
- Dimension (H) : 6.35 mm
- Dimension (I): 0.365 inches
- Dimension (I) : 9.27 mm
- Dimension (J): 1.300 inches
- Dimension (J) : 33.02 mm
- Dimension (L): 0.750 inches
- Dimension (L) : 19.05 mm
- Dimension (N): 0.625 inches
- Dimension (N) : 15.88 mm
- Dimension (O): 0.312 inches
- Dimension (O) : 7.92 mm
- Dimension (X): 3.485 inches
- Dimension (X) : 88.5 mm
- Dimension (Y): 0.970 inches
- Dimension (Y) : 24.6 mm
- Dimension (Z): 0.570 inches
- Dimension (Z) : 14.5 mm
- Dimension (Z1): 0.120 inches
- Dimension (Z1) : 3.05 mm
- Weight: 1.25 lbs
- Weight : 0.57 kg

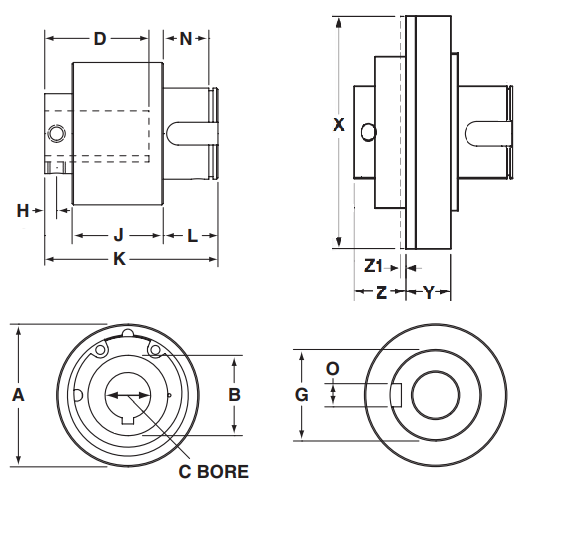

| End-of-Shaft Mount Torq-Tenders with Actuating Disc - Type SD tt2sd Configuration | |
| C Bore | |
