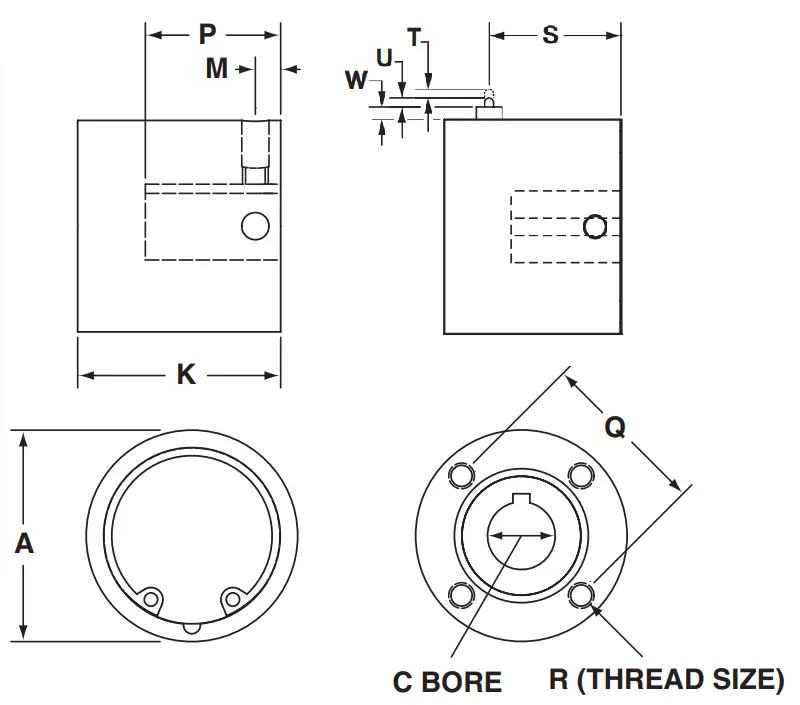

End-of-Shaft Mount Torq-Tenders with Actuating Pin

Part Number: TT2X-JFP

Specifications
Click for English
Click for Metric
  • Torque Range: 18 - 350 in-lbs
  • Torque Range : 2.0 - 39.5 Nm
  • Minimum Bore: 0.375 inches
  • Minimum Bore : 10 mm
  • Max Bore (C): 0.750 inches
  • Max Bore (C) : 19 mm
  • Housing Diameter (A): 2.500 inches
  • Housing Diameter (A) : 63.5 mm
  • Overall Length (K): 2.250 inches
  • Overall Length (K) : 57.15 mm
  • Dimension (M): 0.325 inches
  • Dimension (M) : 8.3 mm
  • Bore Depth (P): 1.500 inches
  • Bore Depth (P) : 38.1 mm
  • Bolt Circle (Q): 2.000 inches
  • Bolt Circle (Q) : 50.80 mm
  • Thread Size (R): (4) 1/4"-20 X 0.50" Deep
  • Dimension (S): 1.608 inches
  • Dimension (S) : 40.8 mm
  • Dimension (T): 0.125 inches
  • Dimension (T) : 3.18 mm
  • Dimension (U): 0.125 inches
  • Dimension (U) : 3.18 mm
  • Dimension (W): 0.200 inches
  • Dimension (W) : 5.08 mm
  • Weight: 2.25 lbs
  • Weight : 1.0 kg
