End-of-Shaft Mount Torq-Tenders with Actuating Disc

Part Number: TT3X-JFD

Click image to enlarge
Quantity:

Specifications
Click for English
Click for Metric
  • Torque Range: 300 - 1,500 in-lbs (must specify)
  • Torque Range : 33-.9 - 169.5 Nm (must specify)
  • Minimum Bore: 0.750 inches
  • Minimum Bore : 19 mm
  • Max Bore (C): 1.500 inches
  • Max Bore (C) : 38 mm
  • Housing Diameter (A): 3.625 inches
  • Housing Diameter (A) : 92.1 mm
  • Housing Dimension (AA): 3.550 inches
  • Housing Dimension (AA) : 90.2 mm
  • Overall Length (K): 3.550 inches
  • Overall Length (K) : 90.2 mm
  • Dimension (M): 0.400 inches
  • Dimension (M) : 10.2 mm
  • Bore Depth (P): 2.125 inches
  • Bore Depth (P) : 54.0 mm
  • Bolt Circle (Q): 3.000 inches
  • Bolt Circle (Q) : 76.20 mm
  • Thread Size (R): (4) 5/16"-18 X 0.50" Deep
  • Dimension (X): 4.950 inches
  • Dimension (X) : 125.7 mm
  • Dimension (Y): 0.970 inches
  • Dimension (Y) : 24.6 mm
  • Dimension (Z): 1.918 inches
  • Dimension (Z) : 48.7 mm
  • Dimension (Z1): 0.120 inches
  • Dimension (Z1) : 3.05 mm
  • Weight: 8 lbs
  • Weight : 3.63 kg

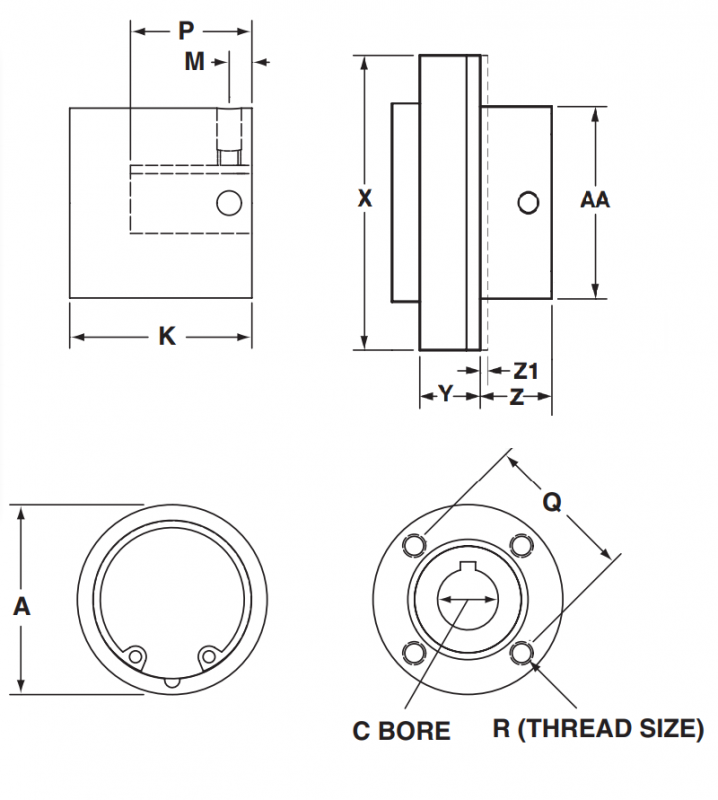

NEW-end-of-shaft-jfd

Adobe 3D PDF help
End-of-Shaft Mount Torq-Tenders with Actuating Disc - Type JFD tt3xjfd Configuration
C Bore

End-of-Shaft Mount Torq-Tenders with Actuating Disc
