End-of-Shaft Mount Torq-Tenders with Actuating Disc

Part Number: TT3JFD

Specifications
Click for English
Click for Metric

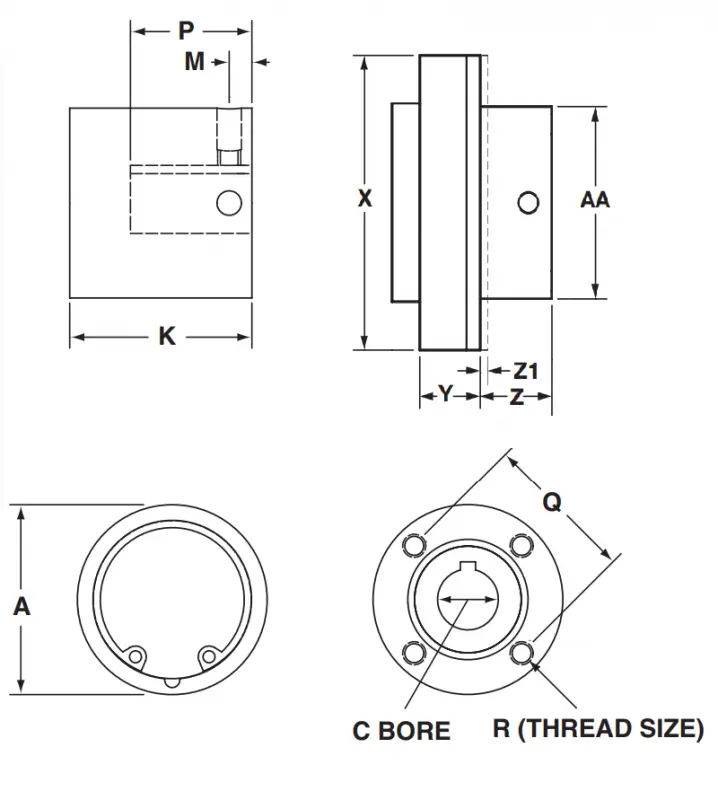

  • Dimension X: 4.480 inches
  • Dimension R: 5/16"-18 X 0.50DP inches
  • Dimension P: 1.625 inches
  • Dimension Q: 2.375 inches
  • Dimension AA : 73.53 mm
  • Dimension Y: 0.970 inches
  • Dimension M: 0.370 inches
  • Dimension Q : 60.33 mm
  • Dimension P : 41.28 mm
  • Dimension Z : 29.21 mm
  • Maximum Torque Setting: 500 in-lbs
  • Dimension Y : 24.64 mm
  • Dimension M : 9.40 mm
  • Dimension Z1 : 3.05 mm
  • Dimension AA: 2.895 inches
  • Maximum Torque Setting : 56.5 Nm
  • Dimension K: 2.560 inches
  • Dimension K : 65.02 mm
  • Dimension Z1: 0.120 inches
  • Dimension Z: 1.150 inches
