Double Set Screw Steel Hub

Part Number: 6P105

Quantity:

Click image to enlarge
Specifications
Click for English
Click for Metric
  • Continuous Rated Torque: 34,900 in-lbs
  • Continuous Rated Torque : 3,944 Nm
  • Peak Rated Torque: 69,800 in-lbs
  • Peak Rated Torque : 7,888 Nm
  • Maximum Bore (Ea) A Hub: 3.750 inches
  • Maximum Bore (Ea) A Hub : 95 mm
  • Maximum Bore (Eb) B Hub: 5.125 inches
  • Maximum Bore (Eb) B Hub : 130 mm
  • Maximum Speed: 2,500 RPM
  • Torsional Stiffness: 118,908 In-lbs/degree
  • Torsional Stiffness : 769,756 Nm/rad
  • Parallel Misalignment: 0.126 inches
  • Parallel Misalignment : 3.2 mm
  • Angular Misalignment: 3 °
  • Axial Misalignment: 0.420 inches
  • Axial Misalignment : 10.7 mm
  • Weight at Max Bore (A Hubs): 101 lbs
  • Weight at Max Bore (A Hubs) : 45.8 kg
  • Weight at Max Bore (B Hubs): 118 lbs
  • Weight at Max Bore (B Hubs) : 53.5 kg
  • Inertia at Max Bore (A Hubs): 1,262 lb-in²
  • Inertia at Max Bore (A Hubs) : 3,693 kg-cm²
  • Inertia at Max Bore (B Hubs): 1,888 lb-in²
  • Inertia at Max Bore (B Hubs) : 5,525 kg-cm²

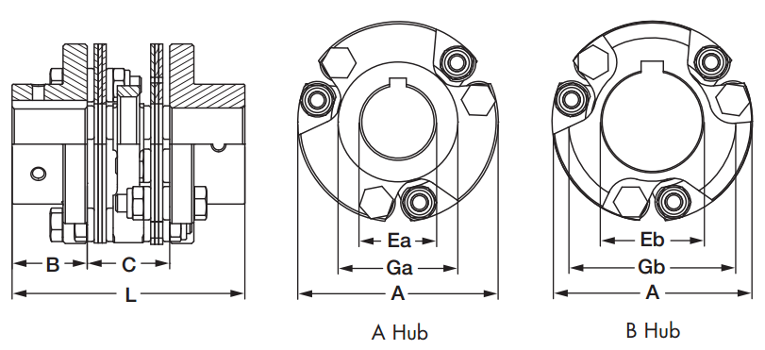

  • Outside Diameter (A): 10.50 inches
  • Outside Diameter (A) : 267 mm
  • Overall Length (L): 12.92 inches
  • Overall Length (L) : 328 mm
  • Hub Length (B): 4.25 inches
  • Hub Length (B) : 108 mm
  • Distance Between Shaft Ends (C): 4.42 inches
  • Distance Between Shaft Ends (C) : 112 mm
  • Inside Diameter of Disc-Pack (H): 4.23 inches
  • Inside Diameter of Disc-Pack (H) : 107 mm
  • A Hub Body Diameter (Ga): 6.11 inches
  • A Hub Body Diameter (Ga) : 155 mm
  • B Hub Body Diameter (Gb): 8.75 inches
  • B Hub Body Diameter (Gb) : 222 mm
