Double Clamp Steel Hubs

Part Number: 6P37C

Quantity:

Click image to enlarge
Specifications
Click for English
Click for Metric
  • Continuous Rated Torque: 1,600 in-lbs
  • Continuous Rated Torque : 181 Nm
  • Peak Rated Torque: 3,200 in-lbs
  • Peak Rated Torque : 362 Nm

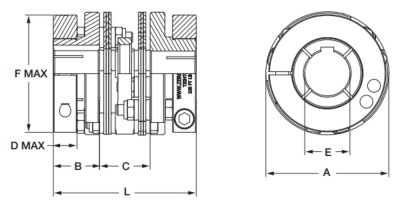

  • Maximum Bore (E) with Keyway: 1.500 inches
  • Maximum Bore (E) with Keyway  : 40 mm
  • Maximum Bore (E) without Keyway: 1.875 inches
  • Maximum Bore (E) without Keyway  : 48 mm
  • Maximum Speed: 6,700 RPM
  • Torsional Stiffness: 5,051 In-lbs/degree
  • Torsional Stiffness : 32,699 Nm/rad
  • Parallel Misalignment: 0.049 inches
  • Parallel Misalignment : 1.2 mm
  • Angular Misalignment: 3 °
  • Axial Misalignment: 0.140 inches
  • Axial Misalignment : 3.6 mm
  • Weight at Max Bore: 6.25 lbs
  • Weight at Max Bore : 2.83 kg
  • Inertia at Max Bore: 7.50 lb-in²
  • Inertia at Max Bore : 21.9 kg-cm²
  • Outside Diameter (A): 3.75 inches
  • Outside Diameter (A) : 95 mm
  • Overall Length (L): 4.55 inches
  • Overall Length (L) : 116 mm
  • Hub Length (B): 1.44 inches
  • Hub Length (B) : 36.6 mm
  • Distance Between Shaft Ends (C): 1.67 inches
  • Distance Between Shaft Ends (C) : 42.4 mm
  • Inside Diameter of Disc-Pack (H): 1.51 inches
  • Inside Diameter of Disc-Pack (H) : 38 mm
  • Maximum Clamp Collar Diameter (F): 3.71 inches
  • Maximum Clamp Collar Diameter (F) : 94 mm
  • Maximum Clamp Collar Width (D): 0.748 inches
  • Maximum Clamp Collar Width (D) : 19 mm

Adobe 3D PDF help
Configuration
Bore Size D1
d1 Keyway Option
Bore Size D2
