Single Flex Flange Hubs Power Series Composite Disc Couplings
Part Number: 12A105-FM-FM
Click image to enlarge
Click image to enlarge
Technical Resources
12A105-FM-FM Specifications
Click for English
Click for Metric
| Part Number | 12A105-FM-FM |
| Continuous Rated Torque: | 5,800 in-lbs |
| Continuous Rated Torque : | 655 Nm |
| Peak Rated Torque: | 11,600 in-lbs |
| Peak Rated Torque : | 1,311 Nm |
| Maximum Speed: | 10,924 RPM |
| Torsional Stiffness: | 32,921 In-lbs/degree |
| Torsional Stiffness : | 213,134 Nm/rad |
| Angular Misalignment: | 0.5° |
| Axial Misalignment: | 0.022 inch |
| Axial Misalignment : | 0.56 mm |
| Parallel Misalignment: | 0.002 inch |
| Parallel Misalignment : | 0.06 mm |

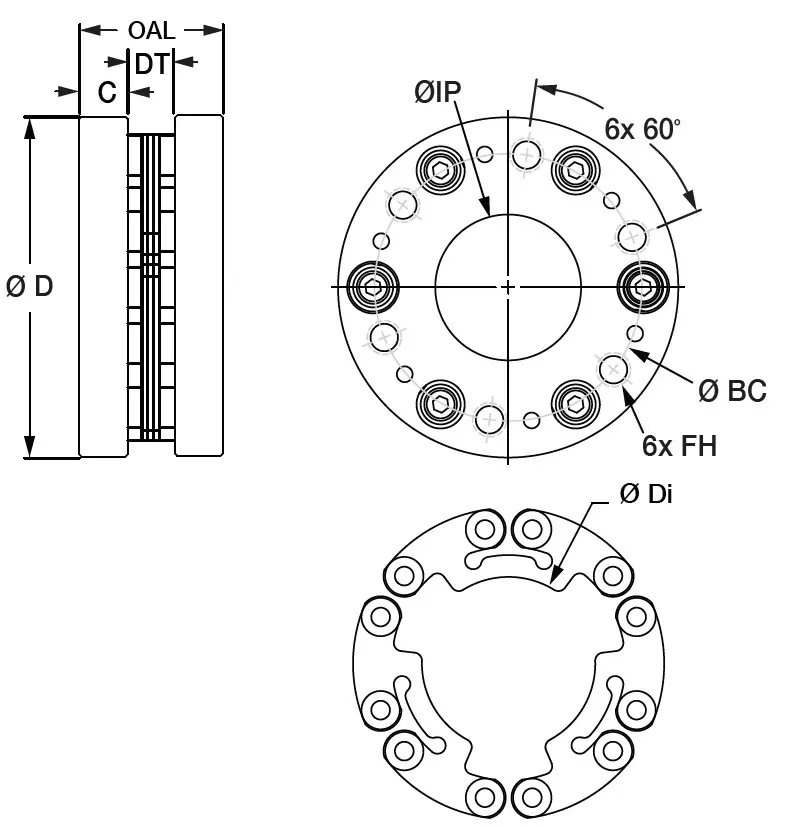

| Flange Plate OD (ØD): | 4.1339 / 4.1325 inches |
| Flange Plate OD (ØD) : | 105.000 / 104.965 mm |
| Flange Length (C): | 0.551 inch |
| Flange Length (C) : | 14 mm |
| Overall Length (OAL): | 1.53 inch |
| Overall Length (OAL) : | 38.8 mm |
| Bolt Circle Diameter (ØBC): | 3.346 inch |
| Bolt Circle Diameter (ØBC) : | 85 inch |
| # of Mtg Holes x Angle: | 6 x 60 deg |
| Flange Bolt Hole Size: | M10-1.5 |
| Flange Pilot (ØIP): | 1.9685 / 1.9695 inches |
| Flange Pilot (ØIP) : | 50.000 / 50.025 mm |
| Disc Pack ID (Di): | 2.05 inch |
| Disc Pack ID (Di) : | 52.1 mm |
| Disc Pack Thickness (DT): | 0.426 inch |
| Disc Pack Thickness (DT) : | 10.8 mm |
| Weight: | 2.96 lbs |
| Weight : | 1.34 kg |
| Inertia: | 7.68 lb-in² |
| Inertia : | 22.47 kg-cm² |
