> > > > > Double Flex Power Clamp x Adaptor
> Double Flex Power Clamp x Adaptor
Double Flex Power Clamp x Adaptor
Part Number: 12P140-C-AM
Warning : array_merge(): Argument #2 is not an array in
/data/www/webroot/zeromax/www.zero-max.com/public_html/includes/classes/image_viewer.php on line
35
Click image to enlarge
Specifications
Click for English
Click for Metric
Continuous Rated Torque: 16,000 in-lbsContinuous Rated Torque : 1,808 NmPeak Rated Torque: 32,000 in-lbsPeak Rated Torque : 3,616 NmMax Bore (C1, Integral Clamp), Keyway: 1.563 inchMax Bore (C1, Integral Clamp), Keyway : 40mmMax Bore (C1, Integral Clamp), no-Key 1.563 inchMax Bore (C1, Integral Clamp), no-Key 40mmMax Bore (C2, Split Clamp), Keyway: 2.938 inchMax Bore (C2, Split Clamp), Keyway : 75mmMax Bore (C2, Split Clamp), no-Key 3.250 inchMax Bore (C2, Split Clamp), no-Key 82mmMaximum Speed: 5,784 RPMTorsional Stiffness: 43,594 In-lbs/degreeTorsional Stiffness : 282,232 Nm/radAngular Misalignment: 0.5°Axial Misalignment: 0.058 inchAxial Misalignment : 1.47 mmParallel Misalignment: 0.015 inchParallel Misalignment : 0.38 mmHub OD (D): 5.51 inchHub OD (D) : 140 mmReduced Hub OD (Integral Clamp), ds: 3.96 inchReduced Hub OD (Integral Clamp), ds : 101 mmHub Length (C): 2.375 inchHub Length (C) : 60.3 mmDimension (D1): 2.23 inchDimension (D1) : 56.7 mmOverall Length (OAL): 6.55 inchOverall Length (OAL) : 166 mmDisc Pack ID (Di): 2.78 inchDisc Pack ID (Di) : 70.6 mmDisc Pack Thickness (DT): 0.486 inchDisc Pack Thickness (DT) : 12.3 mmAdaptor Model: AM125Adaptor Diameter (AD): 7.80 inchAdaptor Diameter (AD) : 198 mmAdaptor Length (AL): 1.94 inchAdaptor Length (AL) : 49.3 mmPilot Diameter (ØP): 6.2992 / 6.3008 inchPilot Diameter (ØP) : 160.000 / 160.040 mmPilot Depth (PD): 0.28 inchPilot Depth (PD) : 7.0 mmAdaptor Plate Thickness (AT): 0.60 inchAdaptor Plate Thickness (AT) : 15.2 mmBolt Hole Diameter (ØBH): 0.42 inchBolt Hole Diameter (ØBH) : 10.7 mmBolt Circle (ØBC): 4.92 inchBolt Circle (ØBC) : 125 mmAdaptor Plate ID (ID): 3.15 inchAdaptor Plate ID (ID) : 80.0 mmWeight: See CatalogWeight : See CatalogInertia: See CatalogInertia : See Catalog
Hub Style "C1" = Single-Bolt Integral Clamp Hub Hub Style "C2" = Two-Bolt Split Clamp Hub
End-of-Shaft Mount Torq-Tenders with Actuating Pin - Type SP 12P140-C-AM Configuration
Clamp Option 1
C1
C2
Bore Size D1
1.1875"
1.2500"
1.3125"
1.3750"
1.4375"
1.5000"
1.5625"
1.6250"
1.6875"
1.7500"
1.8125"
1.8750"
1.9375"
2.0000"
2.0625"
2.1250"
2.1875"
2.2500"
2.3125"
2.3750"
2.4375"
2.5000"
2.5625"
2.6250"
2.6875"
2.7500"
2.8125"
2.8750"
2.9375"
3.0000"
3.0625"
3.1250"
30 mm
31 mm
32 mm
33 mm
34 mm
35 mm
36 mm
37 mm
38 mm
39 mm
40 mm
41 mm
42 mm
43 mm
44 mm
45 mm
46 mm
47 mm
48 mm
49 mm
50 mm
51 mm
52 mm
53 mm
54 mm
55 mm
56 mm
57 mm
58 mm
59 mm
60 mm
61 mm
62 mm
63 mm
64 mm
65 mm
66 mm
67 mm
68 mm
69 mm
70 mm
71 mm
72 mm
73 mm
74 mm
75 mm
76 mm
77 mm
78 mm
79 mm
80 mm
d1 Keyway Option
YES
NO
Double Flex Power Clamp x Adaptor
Part Number: 12P140-C-AM

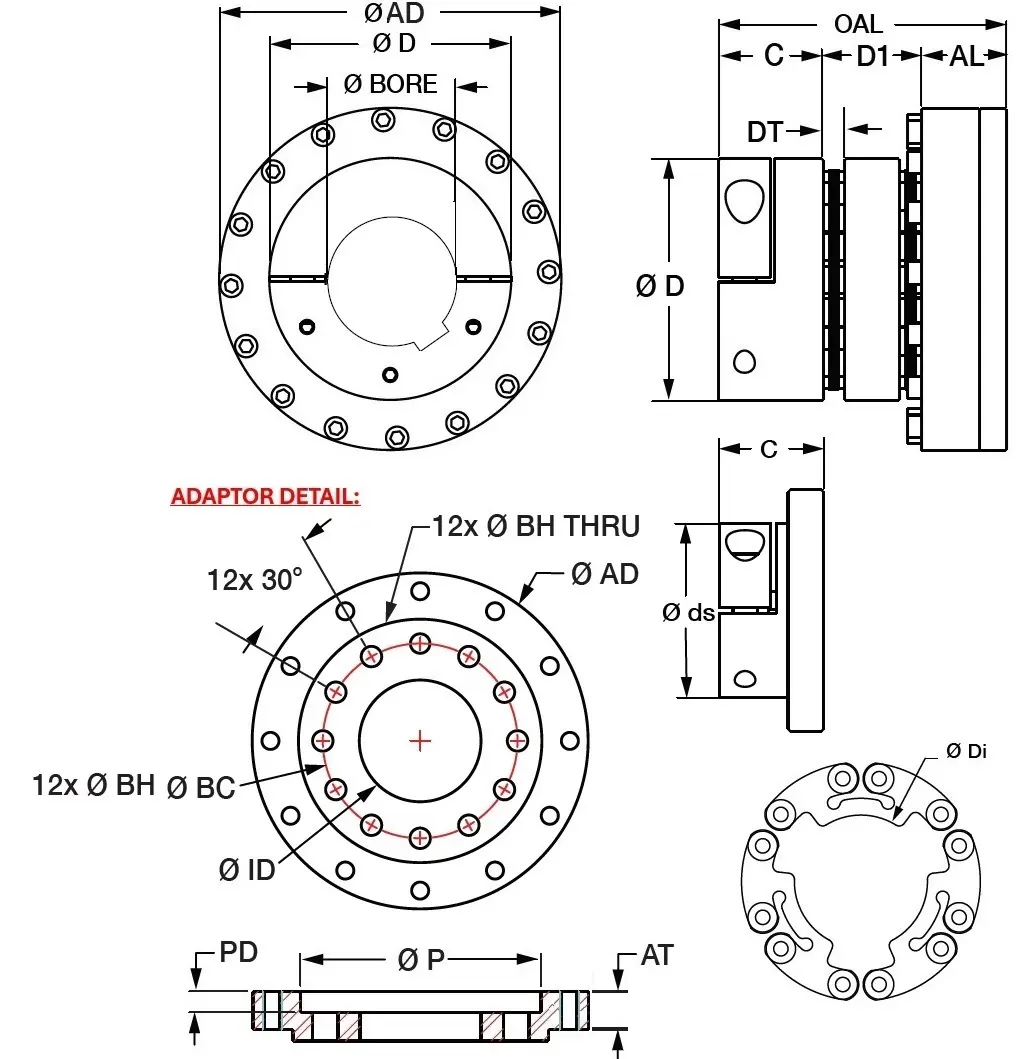

Double Flex Power Clamp x Adaptor 12P140-C-AM Specifications
Click for English
Click for Metric
Part Number 12P140-C-AM Continuous Rated Torque: 16,000 in-lbs
Continuous Rated Torque : 1,808 Nm
Peak Rated Torque: 32,000 in-lbs
Peak Rated Torque : 3,616 Nm
Max Bore (C1, Integral Clamp), Keyway: 1.563 inch
Max Bore (C1, Integral Clamp), Keyway : 40mm
Max Bore (C1, Integral Clamp), no-Key 1.563 inch
Max Bore (C1, Integral Clamp), no-Key 40mm
Max Bore (C2, Split Clamp), Keyway: 2.938 inch
Max Bore (C2, Split Clamp), Keyway : 75mm
Max Bore (C2, Split Clamp), no-Key 3.250 inch
Max Bore (C2, Split Clamp), no-Key 82mm
Maximum Speed: 5,784 RPM
Torsional Stiffness: 43,594 In-lbs/degree
Torsional Stiffness : 282,232 Nm/rad
Angular Misalignment: 0.5°
Axial Misalignment: 0.058 inch
Axial Misalignment : 1.47 mm
Parallel Misalignment: 0.015 inch
Parallel Misalignment : 0.38 mm
Hub OD (D): 5.51 inch
Hub OD (D) : 140 mm
Reduced Hub OD (Integral Clamp), ds: 3.96 inch
Reduced Hub OD (Integral Clamp), ds : 101 mm
Hub Length (C): 2.375 inch
Hub Length (C) : 60.3 mm
Dimension (D1): 2.23 inch
Dimension (D1) : 56.7 mm
Overall Length (OAL): 6.55 inch
Overall Length (OAL) : 166 mm
Disc Pack ID (Di): 2.78 inch
Disc Pack ID (Di) : 70.6 mm
Disc Pack Thickness (DT): 0.486 inch
Disc Pack Thickness (DT) : 12.3 mm
Adaptor Model: AM125
Adaptor Diameter (AD): 7.80 inch
Adaptor Diameter (AD) : 198 mm
Adaptor Length (AL): 1.94 inch
Adaptor Length (AL) : 49.3 mm
Pilot Diameter (ØP): 6.2992 / 6.3008 inch
Pilot Diameter (ØP) : 160.000 / 160.040 mm
Pilot Depth (PD): 0.28 inch
Pilot Depth (PD) : 7.0 mm
Adaptor Plate Thickness (AT): 0.60 inch
Adaptor Plate Thickness (AT) : 15.2 mm
Bolt Hole Diameter (ØBH): 0.42 inch
Bolt Hole Diameter (ØBH) : 10.7 mm
Bolt Circle (ØBC): 4.92 inch
Bolt Circle (ØBC) : 125 mm
Adaptor Plate ID (ID): 3.15 inch
Adaptor Plate ID (ID) : 80.0 mm
Weight: See Catalog
Weight : See Catalog
Inertia: See Catalog
Inertia : See Catalog
