Schmidt Offset Shaft Couplings

Part Number: L119A

Specifications
Click for English
Click for Metric
  • Horsepower Capacity: 0.50 hp
  • Maximum Torque Capacity: 400 in-lbs
  • Maximum Torque Capacity : 45.2 Nm
  • Practical Speed Limit: 3,000 RPM
  • Lowest Speed for Max Torque: 80 RPM
  • Min Operating Shaft Offset (S min): 0.250 inches
  • Min Operating Shaft Offset (S min) : 6.35 mm
  • Max Operating Shaft Offset (S max): 0.900 inches
  • Max Operating Shaft Offset (S max) : 22.86 mm
  • Max Shaft Linear Travel (S ml): 1.728 inches
  • Max Shaft Linear Travel (S ml) : 43.9 mm
  • Coupling Weight: 1.4 lbs
  • Coupling Weight : 0.63 kg
  • Inertia (WK²): 0.555 lb-in²
  • Inertia (WK²) : 1.62 kg-cm²

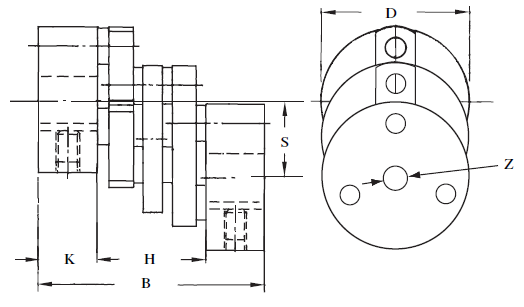

  • Disc Diameter (D): 1.90 inches
  • Disc Diameter (D) : 48.3 mm
  • Coupling Length (B): 2.93 (±.040) inches
  • Coupling Length (B) : 74.35 (±1.02) mm
  • Shaft
