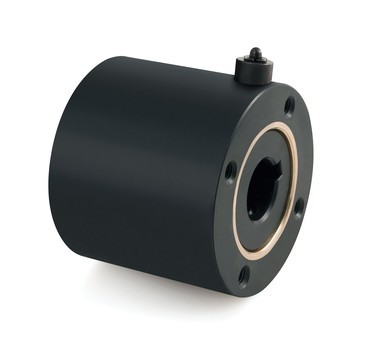

End-of-Shaft Mount Torq-Tenders with Actuating Pin - Type JFP - TT3XJFP

Part Number: TT3XJFP


Adobe 3D PDF help


Image 01 Image 02

Product Details

Configuration
C Bore
Product Name End-of-Shaft Mount Torq-Tenders with Actuating Pin

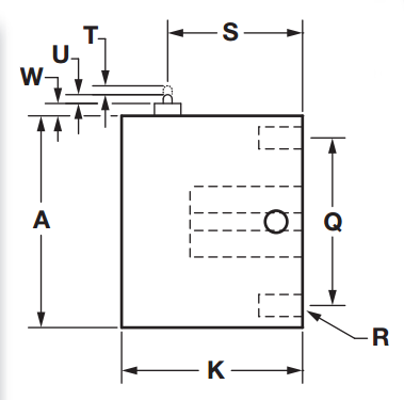

A (in) 3.625
K (in) 3.550
M (in) 0.400
P (in) 2.125
Q (in) 3.000
R (in) 5/16-18 X 0.56DP
S (in) 2.730
T (in) 0.125
U (in) 0.125
W (in) 0.175
Coupling Size for Drawing References 3
Material Map always
Documentation
Source PDF OverloadSafetyCouplingsUScatalog.pdf
