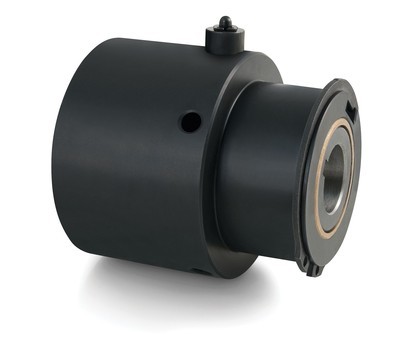

End-of-Shaft Mount Torq-Tenders with Actuating Pin - Type JP - TT3-JP

Part Number: TT3-JP


Adobe 3D PDF help


Image 01 Image 02

Product Details

Configuration
C Bore
Product Name End-of-Shaft Mount Torq-Tenders with Actuating Pin

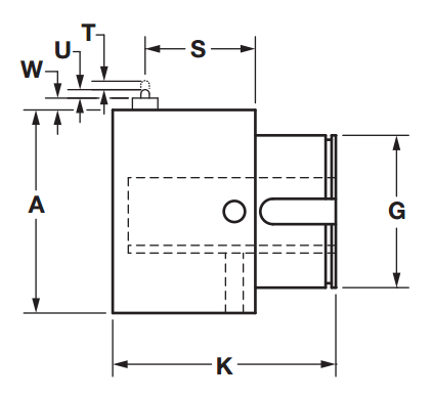

A (in) 3.000
G (in) 2.248
J (in) 3.060
K (in) 3.294
L (in) 1.189
N (in) 1.040
O (in) 0.375
S (in) 1.627
T (in) 0.125
U (in) 0.125
W (in) 0.175
Coupling Size for Drawing References 3
Material Map always
Documentation
Source PDF OverloadSafetyCouplingsUScatalog.pdf
