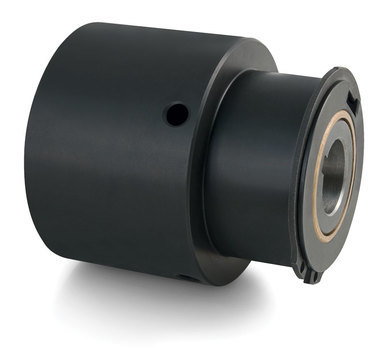

Regular End-of-Shaft Mount Torq-Tenders - Type J - TT3-J

Part Number: TT3-J


Adobe 3D PDF help


Image 01

Product Details

Configuration
C Bore
Product Name Regular End-of-Shaft Mount Torq-Tenders

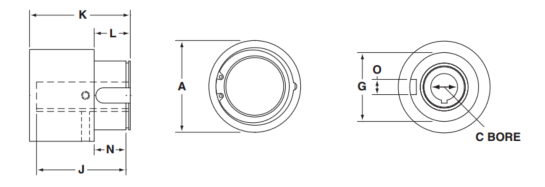

A (in) 3.000
G (in) 2.250
J (in) 3.060
K (in) 3.294
L (in) 1.189
N (in) 1.030
O (in) 0.375
Coupling Size for Drawing References 3
Material Map always
Documentation
Source PDF OverloadSafetyCouplingsUScatalog.pdf
