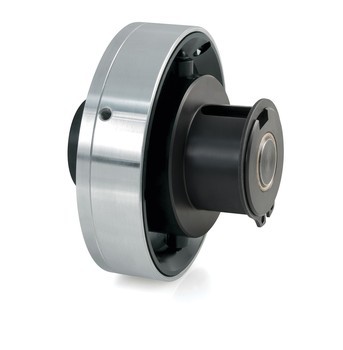

End-of-Shaft Mount Torq-Tenders with Actuating Disc - Type SD - TT2-SD

Part Number: TT2-SD


Adobe 3D PDF help


Image 01 Image 02

Product Details

Configuration

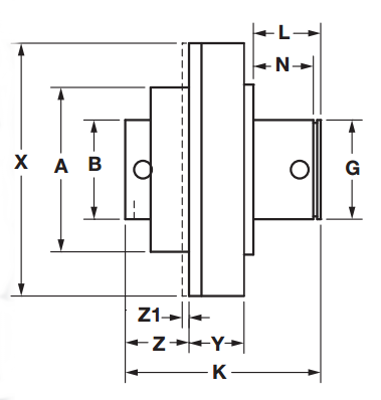

C Bore
A (in) 2.165
B (in) 1.250
D (in) 1.540
G (in) 1.375
H (in) 0.250
K (in) 2.420
L (in) 0.748
N (in) 0.625
O (in) 0.312
X (in) 3.485
Y (in) 0.970
Z (in) 0.570
Z1 (in) 0.120
Coupling Size for Drawing References 2
