Regular End-of-Shaft Mount Torq-Tenders - Type JF - TT1XJF

Part Number: TT1XJF


Adobe 3D PDF help

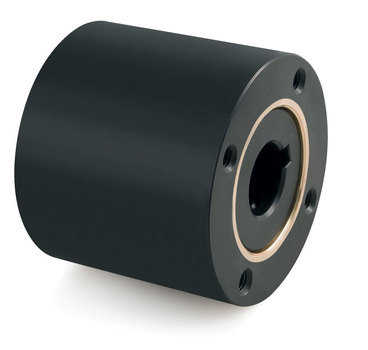

Image 01

Product Details

Configuration
C Bore
Product Name Regular End-of-Shaft Mount Torq-Tenders

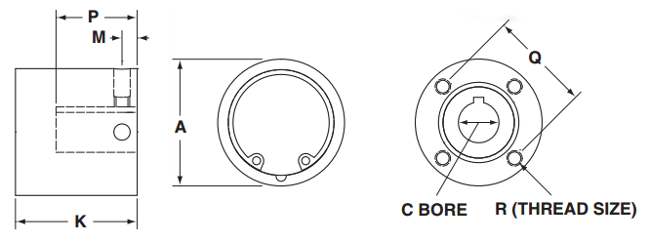

A (in) 1.562
K (in) 1.500
M (in) 0.187
P (in) 0.875
Q (in) 1.250
R (in) 10-32 X 0.25DP
Coupling Size for Drawing References 1
Material Map always
Documentation
Source PDF OverloadSafetyCouplingsUScatalog.pdf
