H-TLC Torque Limiters - H-TLC-500-B

Part Number: H-TLC-500-B


Adobe 3D PDF help


Image 01

Product Details

Configuration
C Bore

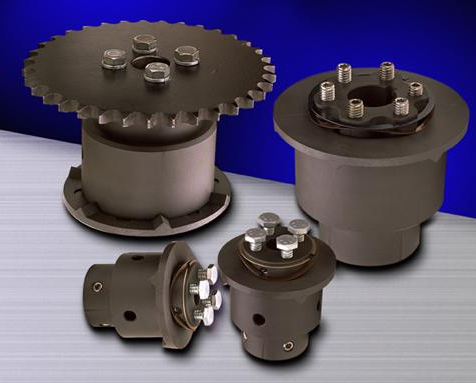

Product Name H-TLC Torque Limiters

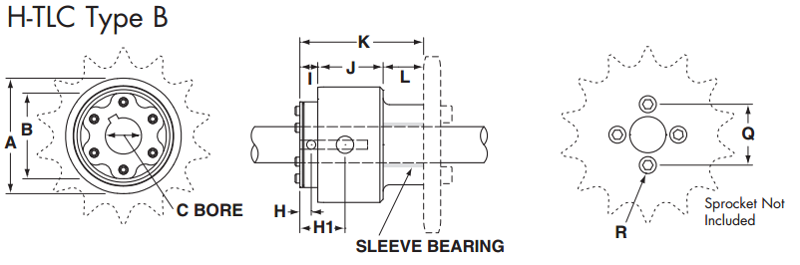

A (in) 2.000
B (in) 1.490
D (in) 1.625
E (in) 0.855
G (in) 1.490
H (in) 0.250
H1 (in) 1.250
I (in) 0.563
J (in) 1.187
K (in) 2.500
L (in) 0.748
M (in) 0.375
Q (in) 1.125
R (in) 1/420 x 1/2 DP
X (in) 2.500
Z (in) 2.275
Z1 (in) 2.125
Coupling Size for Drawing References 500
Material Map always
Documentation
Source PDF OverloadSafetyCouplingsUScatalog.pdf
