ETP Hydropress - ETP-HP260

Part Number: ETP-HP260


Adobe 3D PDF help


Image 01

Product Details

Product Name ETP Hydropress Keyless Shaft Bushings
Transmittable T (ft lb) 11,800
Transmittable FA (ft lb) 24,054
Bore Tolerance Upper Limit (in) 11.734
Bore Tolerance Lower Limit (in) 11.732
Bore Tolerance Grade H7
Shaft Tolerance Upper Limit (in) 10.236
Shaft Tolerance Lower Limit (in) 10.234
Shaft Tolerance Grade h7

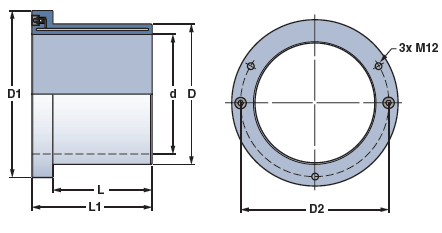

Dimension (d) (in) 10.24
Dimension (D) (in) 11.73
Dimension (D1) (in) 13.39
Dimension (D2) (in) 12.17
Dimension (L) (in) 8.86
Dimension (L1) (in) 10.24
Documentation
Source PDF Zero-Max_ETP_Connections.pdf
