ETP-ER1-3/4 Express Stainless Steel Keyless Shaft Bushings

Part Number: ETP-ER1-3/4

Specifications
  • Transmittable T: 1,033 ft-lbs
  • Transmittable FA: 11,465 lbf
  • Transmittable FR: 787 lbf

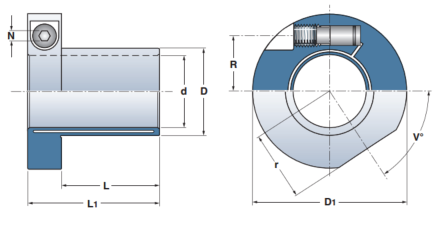

  • Shaft Bore Diameter (d): 44.45mm (1.750")
  • Shaft Tolerance Grade: h8
  • Sleeve Diameter (D): 54 mm
  • Hub Bore Tolerance Grade: H7
  • Sleeve Length (L): 58 mm
  • Overall Length (L1): 78 mm
  • Flange Diameter (D1): 93.0 mm
  • Dimension (D2): 100.3 mm
  • Weight: 2.38 lb
  • Polar Moment of Inertia: 28.24 x10⁻³ lb-ft²
  • Actuation Screws: M16
  • Tightening Torque: 15.49 ft-lbs
  • Actuation Screw to Center (R): 34.8 mm
  • Flat to Center (r): 41.1 mm
  • Angle (V): 59 °
